Plex AVOD Direct Playback — Partner Integration Guide¶

DRAFT — for partner feasibility review. This document describes a proposed integration and is subject to change. Please read it end-to-end and flag anything that is not implementable on your platform before we begin building. Field names, paths, and examples are indicative.

1. Introduction¶

This guide describes how to play Plex ad-supported video-on-demand (AVOD) titles directly inside your own player, without launching the Plex app. Your application:

Ingests a Plex catalog whose items carry a playback key (a URL) for each title.
When a user starts a title, your player calls that key — the bootstrap endpoint — which returns a ready-to-use playback bundle: stream URLs, DRM information, an ad tag (VMAP), and a progress (timeline) reporting URL.
Your player then plays the stream, inserts ads client-side, and reports progress to Plex.

You are responsible for playback, client-side ad insertion, and sending progress (timeline) events. Plex handles authentication, content rights, ad decisioning, and DRM licensing behind the endpoints.

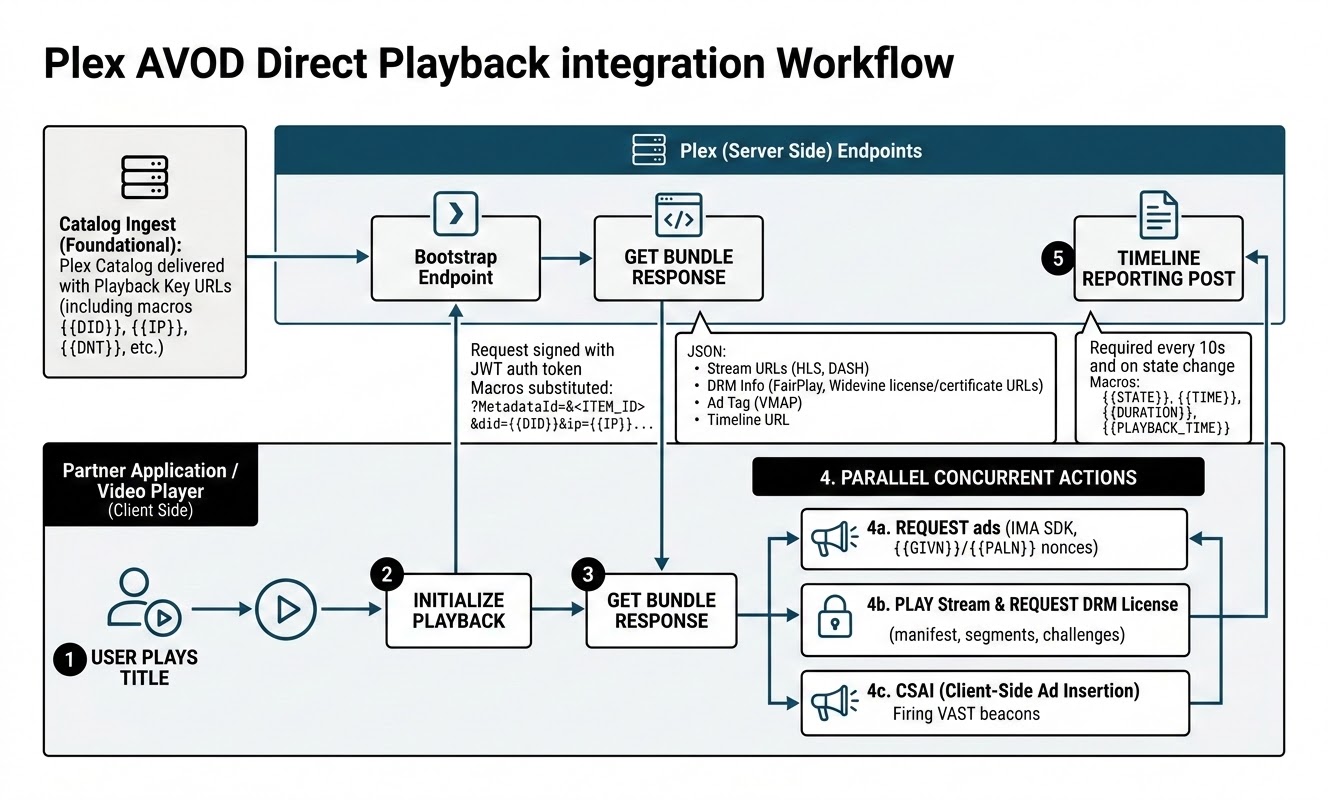

2. Integration at a glance¶

3. Prerequisites¶

Shared secret — the same secret you already use for the FAST direct-playback integration, used to sign requests (see §4). Keep it server-side, never ship it in the app binary.
A player supporting HLS+FairPlay and/or DASH+Widevine (see §8).
An ad SDK — we recommend the Google IMA SDK for client-side ad insertion (see §9).

4. Authentication¶

Every request to the bootstrap endpoint must be authenticated with a JSON Web Token (JWT) you generate and sign with your shared secret (the same secret as your FAST integration). Authentication is always required for this endpoint.

Algorithm: HS256 (HMAC + your shared secret).
Payload: a single claim, the current time in Unix seconds:
```
{ "timestamp": 1737000000 }
```
Validity: the timestamp must be within the last 5 minutes. A small future skew (up to 60 seconds) is tolerated for drifting device clocks; anything further in the future is rejected. Generate a fresh token per request (or refresh at least every 5 minutes), and derive the timestamp from a synchronized clock.
Transport: send the token in the Authorization header (with or without a Bearer prefix), or fall back to a token query parameter:
```
Authorization: <jwt>
```

Invalid, missing, or stale tokens are rejected with 403. The error message distinguishes the failure: Invalid token signature. (wrong secret or corrupted token), Invalid token - expired payload (timestamp older than 5 minutes), Invalid token - missing or invalid timestamp (missing or non-numeric timestamp claim), and Invalid token - timestamp is in the future (check device clock skew).

5. The catalog¶

Compared to the standard deeplink catalog, the AVOD direct-playback catalog changes one thing: each item's playback key points at the bootstrap endpoint instead of a Plex app deeplink.

Fetching the catalog¶

GET https://catalogs.provider.plex.tv/catalogs/<PARTNER>/vod_direct_playback?apiKey=<API_KEY>

<PARTNER> is your Plex-assigned partner identifier — Plex gives you the exact value. You shouldn't need to assemble these URLs by hand: the catalog URL is provided to you, and each item's bootstrap URL comes prebaked in the catalog feed.
Auth is the apiKey query parameter (the same key as your existing catalog integration); a missing or wrong key is rejected with 401.
The response is a 302 redirect to a time-limited signed URL. Follow it with GET only — the signed URL rejects HEAD and other methods.
The catalog is regenerated roughly every 3 hours; poll on that cadence or slower.

Format & scale¶

The catalog is a single minified JSON file, {"metadata":[ … ]} — currently on the order of 340 MB and ~118,000 items, with no pagination or chunking. Ingest it server-side with a streaming JSON parser into your own store and serve your client applications from that copy; do not parse the file in memory or ship it to devices.

Two practical notes for the ingest:

The entire metadata array is on one line. Line-oriented "streaming" (read a line, parse a line — the usual trick for large JSON exports) degrades to loading the whole file; a character-level incremental (SAX-style) parser is required.
The signed download URL supports HTTP range requests (206 Partial Content), so an interrupted ingest can resume from its last byte offset instead of restarting.

Item schema¶

The metadata array is flat: movies, shows, seasons, and episodes are sibling entries linked by ids in series_info. Only movies and episodes are playable; show and season entries are structural and carry an empty availabilities array. Gate playability on type ∈ {movie, episode} — never on the mere presence of an availabilities array. Because geo and window travel in availabilities, show/season rows derive them from their episodes: surface a show wherever (and whenever) at least one of its episodes is playable.

The example below shows the item schema; its field values are illustrative and do not reflect any live title's actual licensing (for real test titles and their geo, see §14).

{
  "type": "movie",
  "id": "5d776f7e51dd69001fe54134",
  "titles": [{ "country": "US", "language": "en", "title": "Example Title" }],
  "descriptions": [{ "language": "en", "description": "…" }],
  "genres": ["Drama"],
  "release_date": "2016-02-07",
  "runtime": 122,
  "ratings": [{ "country": "US", "rating": "R", "rating_body": "MPAA" }],
  "images": [{ "type": "coverPoster", "url": "https://metadata-static.plex.tv/…", "width": 960, "height": 1440 }],
  "credits": [{ "person_name": "…", "role": "…", "type": "actor" }],
  "availabilities": [
    {
      "countries": ["CA", "US"],
      "available_starting": "2025-04-11T00:00:00.000Z",
      "available_ending": "9999-12-31T23:59:59.999Z",
      "audio_languages": ["en"],
      "subtitle_languages": ["en"],
      "delivery_method": "vod",
      "monetization_type": "ads",
      "quality": "hd",
      "url": "https://vod.provider.plex.tv/playback/<PARTNER>/bootstrap?metadataId=5d776f7e51dd69001fe54134&format=json&did={{DID}}&…"
    }
  ]
}

type is one of movie | show | season | episode.
series_info links the hierarchy: episodes carry { show_id, season_id, season_number, episode_number }, seasons carry { show_id, season_number, number_of_episodes }, shows carry no series_info.
An item may carry multiple availabilities with different country sets and windows; pick the one matching the viewer.
titles / descriptions are per-language arrays; images are typed (coverPoster for posters, coverArt for wide art); ratings are per country.

Availability window & geo¶

Each playable item carries its availability window and allowed geographies. Your application must respect these when deciding what to surface:

Availability window — start/end timestamps during which the title is playable.
Geo — the countries in which the title is licensed.

Playback of a title outside its window or geo is refused at bootstrap with a 404 (see §13); a geo change mid-session is refused with a terminationCode (see §11). Filtering your surfaced catalog to in-window, in-geo titles avoids presenting titles that will fail to play.

Playback key format¶

https://vod.provider.plex.tv/playback/<PARTNER>/bootstrap?metadataId=<ITEM_ID>
    &format=json
    &did={{DID}}
    &dnt={{DNT}}
    &app_version={{AppVersion}}
    &app_bundle={{appPackage}}
    &app_store_url={{AppStoreUrl}}
    &device_make={{DeviceMake}}
    &device_model={{DeviceModel}}
    &platform={{operatingSystem}}
    &h={{playerHeight}}
    &w={{playerWidth}}

<ITEM_ID> is fixed per title. The {{…}} tokens are macros your player must replace at runtime (the token spellings are shared with the FAST direct-playback integration).

Substitute by query-parameter name, not by token spelling. Treat any parameter whose value looks like {{…}} as a macro slot and fill it based on the parameter name from the table in §6. This keeps your implementation robust if token capitalization ever differs between integrations.

6. Macro reference¶

Query param	Macro	Required	Description
`did`	`{{DID}}`	Recommended	Device advertising ID; absent when the user opts out of ad tracking
`dnt`	`{{DNT}}`	No	Do-not-track flag (`0` or `1`)
`device_make`	`{{DeviceMake}}`	No	Device manufacturer
`device_model`	`{{DeviceModel}}`	No	Device model
`platform`	`{{operatingSystem}}`	No	OS / platform name
`app_version`	`{{AppVersion}}`	No	Your app version
`app_bundle`	`{{appPackage}}`	No	App bundle / package identifier
`app_store_url`	`{{AppStoreUrl}}`	No	App store listing URL
`h`	`{{playerHeight}}`	No	Player viewport height in pixels
`w`	`{{playerWidth}}`	No	Player viewport width in pixels

No macro is strictly required. Send did whenever the device exposes it — it improves ad targeting and session continuity — but if the user has opted out of ad tracking (so the OS withholds the advertising ID), simply omit it; Plex falls back to the request IP. Any macro you cannot supply should be omitted or left empty rather than sent as an un-substituted {{…}} literal.

7. Starting playback — the bootstrap request¶

GET https://vod.provider.plex.tv/playback/<PARTNER>/bootstrap?metadataId=<ITEM_ID>&format=json&did=…

with the Authorization header from §4 and the headers from §12.

Request origin & geo¶

Plex derives the viewer's country from the source IP of the bootstrap request, so that IP must be the end user's. Issue the request from the end-user's device wherever possible. If you must proxy it through your own servers, set the X-Forwarded-For header to the end user's client IP so geo resolves correctly — otherwise titles may be wrongly allowed or refused for the viewer's region. (Geo is also re-checked mid-session — see §11.)

Response¶

{
  "drmEnabled": true,
  "streams": [
    {
      "protocol": "dash",
      "drm": "widevine",
      "manifestURL": "https://vod.provider.plex.tv/library/parts/<PART>-dash.mpd?…",
      "licenseURL": "https://vod.provider.plex.tv/library/parts/<PART>-dash/license?…"
    },
    {
      "protocol": "hls",
      "drm": "fairplay",
      "manifestURL": "https://vod.provider.plex.tv/library/parts/<PART>-hls.m3u8?…",
      "licenseURL": "https://vod.provider.plex.tv/library/parts/<PART>-hls/license?…",
      "certificateURL": "https://vod.provider.plex.tv/library/parts/<PART>-hls/certificate?…"
    }
  ],
  "ad": {
    "vmapURL": "https://vod.provider.plex.tv/vmap?…"
  },
  "timeline": {
    "url": "https://vod.provider.plex.tv/timeline?…&state={{STATE}}&time={{TIME}}&duration={{DURATION}}&playbackTime={{PLAYBACK_TIME}}",
    "intervalSeconds": 10
  },
  "metadata": {
    "title": "Example Title",
    "durationMs": 5400000
  },
  "tracks": {
    "audio": [
      { "languageCode": "en", "channels": 6, "default": true },
      { "languageCode": "es", "channels": 2 }
    ],
    "subtitles": [{ "languageCode": "eng", "label": "English" }]
  }
}

All URLs are ready to use as-is — the necessary authentication is already embedded. Do not modify them except to substitute the timeline macros (see §10) and to attach the ad nonce (see §9). Treat the URLs as opaque.

8. Playback: streams and DRM¶

The bundle returns one entry per supported protocol; pick the one your device supports best:

Protocol	DRM	Notes
HLS	FairPlay	`manifestURL`, `licenseURL`, `certificateURL`
DASH	Widevine	`manifestURL`, `licenseURL`

Check drmEnabled first. The top-level drmEnabled boolean tells you whether the returned streams are DRM-protected. When it is false, each stream carries only protocol + manifestURL (play it in the clear); the drm / licenseURL / certificateURL fields are absent.
Expect a mixed catalog. Clear and DRM-protected titles coexist in the same catalog (DRM depends on the content licensor; only a minority of titles carry it). Per-title drmEnabled branching is core logic, not an edge case — an implementation tested only on clear titles will fail on DRM ones, and vice versa.
Use DRM whenever drmEnabled is true. Each stream entry's drm field names its scheme (widevine / fairplay); you must play it through DRM: load the manifest, then satisfy the license challenge against the entry's licenseURL. For FairPlay, fetch the application certificate from certificateURL first. Use the license/certificate URLs from the bundle — do not construct your own.
No quality gating by security level. AVOD licenses do not restrict resolution or enforce output protection based on the device's DRM security level — a Widevine L3 device receives the same full-quality streams as an L1 device, and playback is not blocked on missing HDCP.
Codecs: video H.264/AVC, audio AAC, fMP4 segments; subtitles in WebVTT, SRT, or ASS. Exact profiles/levels will be finalized before launch.
Track selection: the tracks block lists available audio and subtitle options for building your selection UI; the actual tracks are carried in the manifest. languageCode is served as stored — audio is typically ISO 639-1 (en) while subtitles are ISO 639-2 (eng); treat the manifest as the source of truth and don't join these values against each other or the catalog's *_languages fields.
HLS packaging is CBCS and advertises both DRM systems. HLS variant playlists carry two EXT-X-KEY tags — a Widevine one (KEYFORMAT="urn:uuid:edef8ba9-…") and the FairPlay one (KEYFORMAT="com.apple.streamingkeydelivery"). Select the FairPlay key format and ignore the Widevine tag; do not assert a single key system per playlist.

FairPlay license exchange¶

FairPlay leaves the license transport to the key server, so these two facts cannot be assumed from the HLS/FairPlay specs. The key URI in the manifest looks like skd://drmtoday?assetId=<uuid>&keyId=<hex>:

Content identifier: the entire skd:// URI, UTF-8 encoded — do not parse out assetId or keyId.
License request (against the stream's licenseURL): POST with Content-Type: application/x-www-form-urlencoded and body spc=<base64-encoded SPC> (URL-encoded, no other parameters). The response is the CKC as raw binary (application/octet-stream) — do not base64-decode it.

certificateURL returns the application certificate as DER X.509.

9. Ads (client-side insertion)¶

Plex AVOD uses client-side ad insertion (CSAI) — your player fetches the ad schedule and inserts ads around the content. We recommend the Google IMA SDK.

The bundle's ad.vmapURL returns a VMAP document describing the ad breaks (pre-roll and any mid-rolls). Point your ad SDK at this URL.
The ad-nonce macros are on ad.vmapURL itself — the URL ends in …&givn={{GIVN}}&paln={{PALN}}. Substitute the nonce your ad SDK generates (IMA and PAL produce the same nonce value; fill both parameters with it) before handing the URL to the SDK. If you cannot generate a nonce, send both parameters empty (givn=&paln=) — do not leave the {{…}} literals in place. Supplying the nonce materially improves ad fill; without it, ads still serve but fill is reduced.
Ad-break boundary events (IMA): on tvOS, AD_BREAK_STARTED/AD_BREAK_ENDED are not emitted for VMAP pre-rolls — drive break boundaries (and the §10 ad-break timeline semantics) from adsManagerDidRequestContentPause / …ContentResume instead. On Android, Media3's IMA extension handles this implicitly: contentPosition/contentDuration already exclude ad periods.
Your player (or the IMA SDK) is responsible for firing the impression and tracking beacons in the returned VAST. Accurate ad playback and signalling is a contractual requirement of the integration.

10. Timeline (progress) reporting¶

This is required. Plex derives all playback and monetization metrics for direct-playback sessions from your timeline events — there are no other client-side metrics in this integration. Under-reporting timelines means under-counted (and under-paid) playback.

Send each timeline event as an HTTP GET to the substituted timeline.url, every intervalSeconds (10s) during playback and on state changes (start, pause, resume, buffering began, buffering ended, stop). POST is not supported and returns 404.
The timeline.url is self-authenticating — the necessary token is pre-embedded. Do not send an Authorization header or build JWT refresh into the reporting loop.
Substitute these macros on each call:

Macro	Value
`{{STATE}}`	`playing`, `paused`, `buffering`, or `stopped`
`{{TIME}}`	Current position within the content (the media playhead), in milliseconds
`{{DURATION}}`	Total content duration, in milliseconds
`{{PLAYBACK_TIME}}`	Elapsed time the user has actually been playing (the player's playback clock), in milliseconds

TIME and PLAYBACK_TIME differ once a session isn't a clean linear play: TIME tracks where the playhead is in the content, while PLAYBACK_TIME accumulates real watch time and therefore diverges after pauses, seeks, or ad breaks. Both are required. PLAYBACK_TIME is what our provider watch-time metrics are computed from — omitting it degrades those metrics (they fall back to a playhead/wall-clock estimate that over- or under-counts) for any session with a pause, seek, or ad.

During ad breaks, keep reporting. Continue the 10-second cadence through every ad break, with STATE = paused and TIME frozen at the content position where the break started, while PLAYBACK_TIME keeps accumulating (ad time counts toward the playback clock). This mirrors what Plex's own players send and is what our monetization metrics expect — stopping the clock during ads under-reports watch time by the full ad-break duration.
After a seek, TIME jumps to the new playhead position while PLAYBACK_TIME continues uninterrupted; the two values are expected to diverge.
Buffering is a state you must also leave. Report STATE = buffering when playback stalls, and report playing again as soon as it recovers — the recovery transition is easy to miss, and an implementation that never exits buffering under-reports the entire rest of the session. While buffering, TIME holds still and PLAYBACK_TIME freezes (unlike ad breaks, the viewer is not watching anything). A stall-and-recover sequence looks like:
```
…&state=playing   &time=12000 &playbackTime=12000
…&state=buffering &time=12000 &playbackTime=12000   ← stall
…&state=playing   &time=12400 &playbackTime=12400   ← recovered: back to playing
```
Everything else in the URL is pre-filled; do not alter it.
Inspect every response — it may instruct you to stop (see §11).

This is the most intricate part of the integration and the easiest to get wrong; please budget for it.

11. Playback termination¶

A /timeline response may instruct you to stop playback. When the response contains a terminationCode, halt playback and surface the accompanying terminationText to the user.

{
  "MediaContainer": {
    "playbackState": "ignore",
    "terminationCode": 2013,
    "terminationText": "Content is unavailable in your country."
  }
}

`terminationCode`	Meaning	Expected player behavior
`2013`	Content not available in the user's country, or the connection was flagged as a VPN/proxy	Stop playback, show `terminationText`
`2008`	Playback has been paused for more than 1 hour; the session has ended	Stop playback, show `terminationText`

If no terminationCode is present, continue playback normally. A non-terminating response requires no action: its other fields (playbackState, viewOffset, …) are server-side bookkeeping whose values vary with playback position and may change — they are not part of the partner contract, so do not parse or branch on them.

Geo/window refusals. The window is checked at bootstrap only: a title outside the viewer's geo or availability window returns 404 with an explanatory message (see §13) — map that to your "not available in your region" UX. Mid-session, terminationCode 2013 covers a geo change or a connection flagged as VPN/proxy after playback started; a window that expires mid-session does not interrupt an in-progress session.

12. Request headers and parameters¶

For the bootstrap request, the only required header is Authorization (the signed JWT from §4). The device details Plex needs are supplied through the query macros in §6; you do not need to send any additional X-Plex-* headers. All other URLs in the bundle (streams, license, timeline.url, ad.vmapURL) are self-authenticating and carry no auth headers of their own (the FairPlay license POST still needs its Content-Type — see §8).

Tracking IDs are managed by Plex. Every identifier needed to correlate the ad and timeline events of a playback is minted by Plex at bootstrap time and comes pre-embedded in the URLs of the bundle (ad.vmapURL, timeline.url). Do not generate or send playback/session identifiers of your own — there is nothing for you to manage.

13. Error handling¶

Status	Meaning
`400`	Unidentifiable request (no `did` and no client IP), or invalid `metadataId`
`403`	Missing / invalid / expired auth token
`404`	Title not found or not currently playable

Error bodies are JSON, wrapped in an Error object — the message is the explanation to surface or log (it is the only detail on a refusal, e.g. a geo-restricted title). The JSON format is selected by the format=json parameter prebaked into your playback key; include it if you ever construct a bootstrap request manually:

{
  "Error": {
    "error": "Not Found",
    "message": "No playable AVOD availability for this title in this region",
    "statusCode": 404
  }
}

For playback-time refusals (geo/availability), see §11.

14. Testing and support¶

Reuse the shared secret from your existing FAST direct-playback integration — no new secret is issued for AVOD.
Plex will provide a sample catalog and a set of test titles. The catalog itself carries no DRM indicator (drmEnabled exists only in the bootstrap response, and only a minority of titles are DRM-protected), so use the supplied DRM titles rather than probing for your own — and note each test title's licensed countries, since a title outside your test egress geo returns the §13 404 rather than a bundle. Current test titles (licenses shift; verify with a bootstrap call before relying on them):

`metadataId`	Title	DRM	Notes
`5d776f7e51dd69001fe54134`	#OntheShouldersofGiants	no (clear)	licensed worldwide
`5d77686a594b2b001e68b695`	The Graduate	yes	7 countries incl. US; not GB
`5d7768b10ab2440020071ca3`	Goblin	yes	GB-playable

Direct integration questions to your Plex partner contact.

15. Open items for partner feedback¶

Please confirm feasibility of the following on your platform:

Client-side ad insertion via the IMA SDK, including nonce ({{GIVN}}/{{PALN}}) generation.
10-second timeline reporting with the required state/time macros, and honoring terminationCode.
HLS+FairPlay and/or DASH+Widevine playback with the license/certificate flow described.
Signing requests with the shared secret (JWT, HS256, 5-minute validity).
